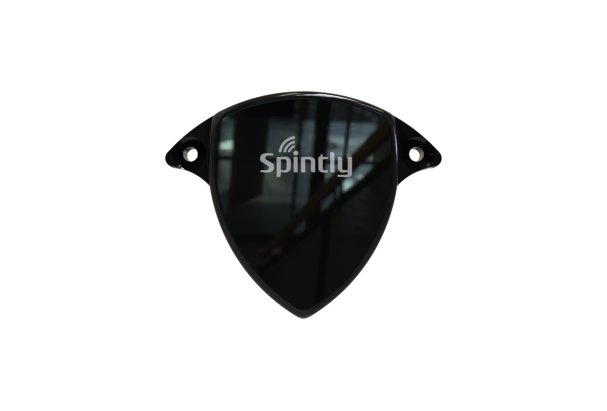

BLE Mesh Repeater

SpintlyTM BLE Mesh Repeater with its elegant design provides a scalable approach to increase the range of your BLE mesh enabled IoT network. The BLE Repeater is an enterprise-level Beacon with ARM core chipset nRF52832 and it has a strong case, accurate hardware and robust firmware. Spintly BLE Mesh Repeater broadcast 2.4GHz radio signals at regular and adjustable intervals.

  • Easy Installation
  • Omni-directional antenna
  • No wiring required
  • Cloud based Data management
  • A max. of(replacing ‘the’ with ‘a’ and then an ‘of’ after max) 200 meters advertising distance
  • Real time data
  • Cost effective solution

SPECIFICATIONS

  • Voltage: 5V DC Input, 1A, micro USB
  • Current: 150mA
  • Power consumption : 0.75mW max at 5V
  • Operating temp: -10 to +60 degree C
11_Z_TV_TBG_RBG

GENERAL INFORMATION

Dimension : 58(L) x 69(H) x 12(W)

Housingmaterial : Steel

Weight : 25g

SOFTWARE SPECIFICATIONS

  • Asset tracking
  • Indoor navigation
  • Indoor positioning

SYSTEM COMPATIBILITY

  • Mesh technology
  • BLE 4.2

SECURITY

  • Fully encrypted communication between beacons other Repeater and Gateway .

APPLICATION

  • BLE range extender
  • Friend node for low power node
  • Hospital equipment tracking
  • Office asset tracking
  • Warehouse package positioning
  • Conference/event space tracking
