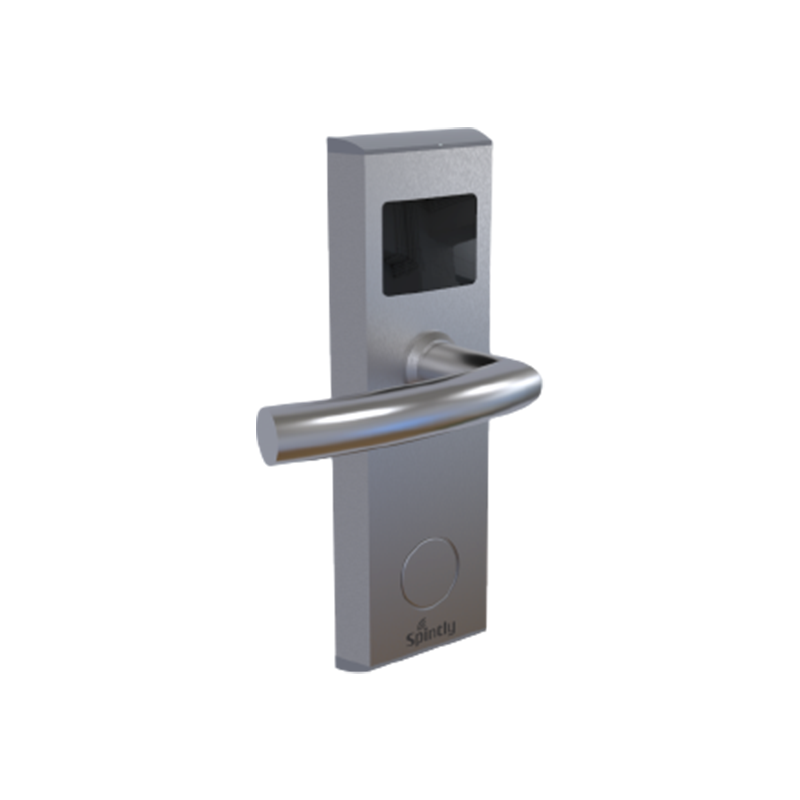

Spintly Smart Door Lock

Spintly’s Smart, convenient and wireless door lock system specifically designed to work with handle door locks which unlocks your door using a smartphone and Mifare card. This product is specifically designed for residential buildings & hotels. A smart efficient smartphone based solution to manage your access.

  • Easy Installation
  • Allows Mobile based access
  • Automated access expiry
  • No wiring required
  • No internet required for access
  • Cloud based access management
  • Mifare card support
  • Card capacity = 3000 users
  • Supports physical key
  • Real time data
  • Material : Stainless Steel
  • Cost effective solution

SPECIFICAITONS

  • Voltage: 6V DC Input of (4 AA batteries)
  • Battery operated
  • Battery life : 1 Year
  • Average Current: 800uA
  • Power consumption : 4.8mW max at 6V
  • Operating temp: -10 to +60 degree C
05_TR_TB

GENERAL INFORMATION

Dimension : 50mm x 85mm x 32mm

Housingmaterial : Steel

Weight : 1.5Kg

Door Thicknesss : >35mm

SYSTEM COMPATIBILITY

  • Mifare card, 13.56MHz
  • BLE 4.2

SECURITY

  • Fully encrypted communication between mobile app and Smart door Lock
  • Fully encrypted communication between reader and tag
  • Eliminates the threat of copying or cloning Spintly Mifare cards
